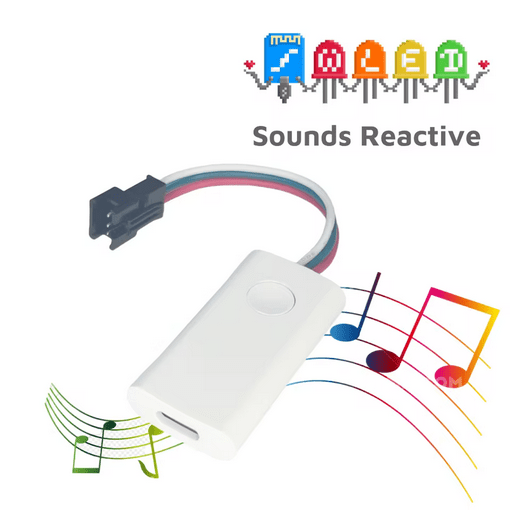

WLED Sounds Reactive Slim Addressable LED strip controller

WLED Sounds Reactive Slim Addressable LED strip controller

*ESP32 4MB chipset built in
*USB to Uart chipset built in, easily flash firmware throught USB
*The controller comes with a built-in microphone, enabling music dynamic mode.
*Level Shifter chipset built in
*Works with power bank for mobile projects
*Elegant and compact
*Input voltage: 5V
*Max current: 3A

Notice:

If you want to upgrade the firmware, please use “WLED_0.x.x_ESP32_audioreactive.bin”
Only supports 5V 3-wire light strips

GPIO:

Button（GPIO0）
Data（GPIO18）
I2S_SDPIN（GPIO19 ）
I2S_WSPIN（GPIO23 ）
I2S_CKPIN（-1）
