SP630E is SPI+5CH PWM all in one led controller, it can compatible with multiple types of LEDs. Such as 1/2/3/4/5CH W/CCT/RGB/RGBW/RGBCCT PWM/Addressble LEDs and Addressble+PWM combined LEDs.
NOTE:
SPI Single Color/CCT/RGB MAX 600Pixels
SPI 4CH RGBW MAX 450Pixels
SPI 5CH RGBCCT MAX 300Pixels
Features:
1. High performance, low power consumption Bluetooth microprocessor.
2. Compatible with 12 kinds of type of LEDs.
3. Support App control, 2.4G touch remote control and 2.4G touch 86-type control panel.
4. The remote control and 86-type control panel can be set up for zone-control
(can be divided into 4 zones), or unified control (ALL).
5. Support to set kinds of on/off animations and the default power-on state.
6. Support for modifying device name, color order correction and setting timers.
7. Support 3 kinds of music capture modes: cell phone microphone, player streaming, on-board microphone.

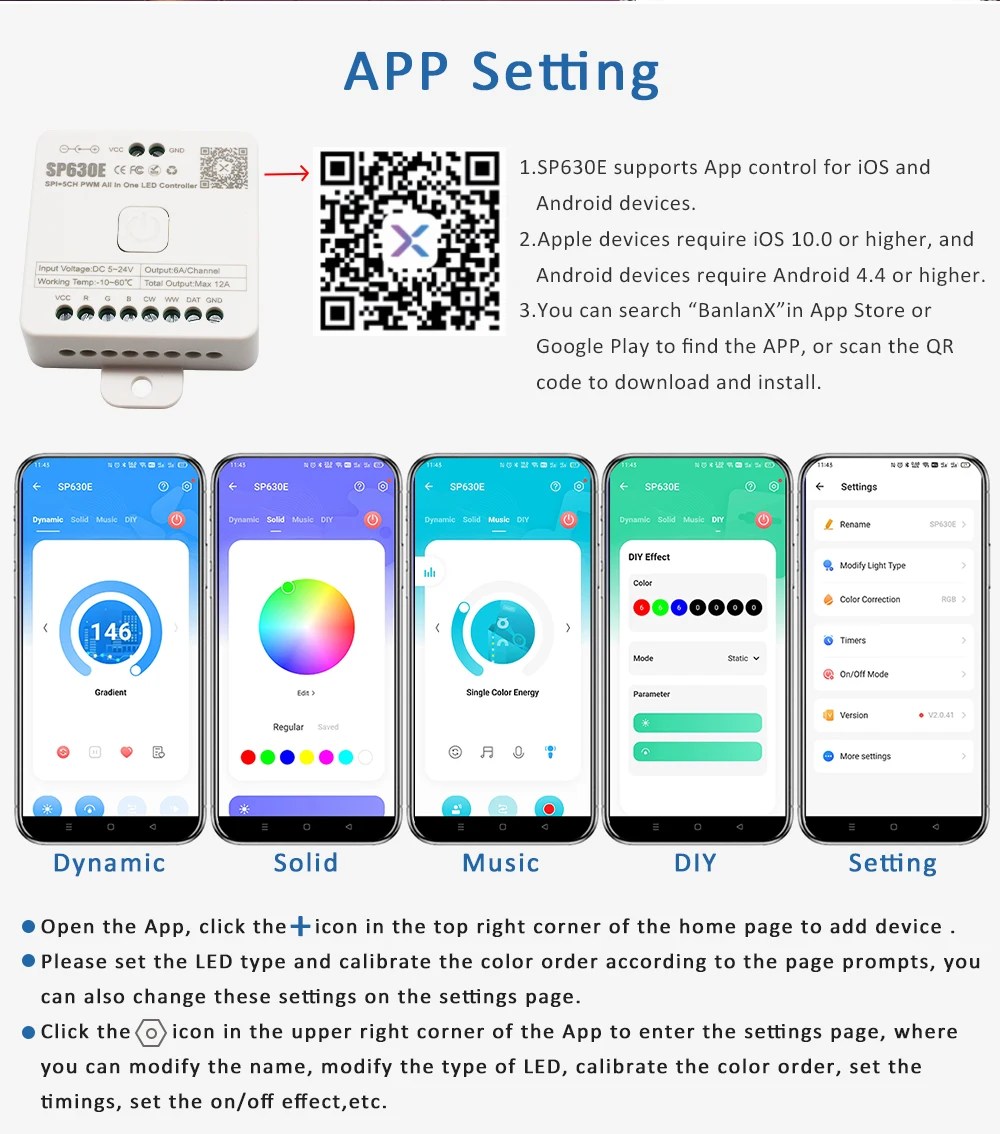

8. 5 major control pages in the App: dynamic, static, music, custom and setting. select different types of LED correspond to different App page content.
Difference between SPI (with IC) strips and PWM (without IC) strips.
Features of SPI and PWM:
IC : SPI— With IC; PWM—Without IC.
PIN : SPI—3PIN/4PIN (with DATA wire) ; PWM—2PIN/3PIN/4PIN/5PIN/6PIN ( Similar to +,R,G,B,W ).
Controller : SPI—ESP8622,Rasp Pi,Arduino,SP611E,SP105E,SP107E,SP108 etc. ; PWM—WIFI WB5, Zigbee LM052, Bluetooth LM053.
Remote Control Not Included
